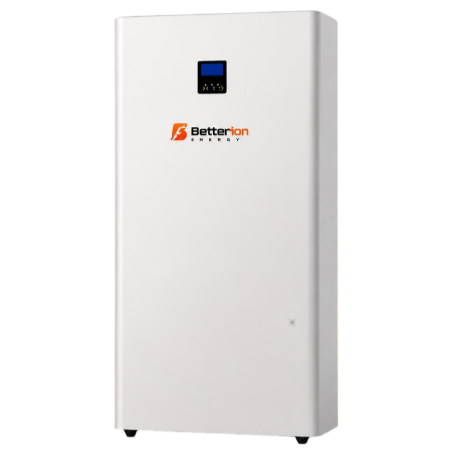

IO5-55 supports solar integration and modular expansion, fitting 110/120V household power systems. With long service life, IP20 indoor rating and complete safety certifications, it serves as a convenient plug-and-play smart home energy storage for reliable backup power.
All-in-one Intergrated
Plug and Play
Pack-level Fire Protection
Low-noise Operation
All-in-one design with integrated solar charging; slim profile; suitable for a wide operating temperature range.
Equipped with a high-brightness LCD screen for real-time monitoring of key operational data.
Compact, space-saving structure; quick to install; quiet operation and hassle-free routine maintenance.
Features multiple safety protection mechanisms; supports real-time Wi-Fi monitoring; compatible with both grid-tied and off-grid applications.
Battery Module Type LiFePO4
Operating Voltage（Input） 90-140Vac±3V
Operating Voltage（Output） 110/120Vac±5%
Nominal Capacity 5.5KW
Nominal Energy 5KWh
Recommended Depth of Discharge (DOD) 90%
Charging Temperature Range 0-60℃
Discharging Temperature Range 0-65℃
Weight [kg] 75kg
Dimension (W×D×H) 530*180*970mm
